• Country
• Soviet Union

• Manufacturer / Brand
• Frunze Radio Works, Gorky, now Nizhnij Novgorod

• Year
• 1950 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 324605

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6Х6С 6Г7 5Ц3С

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

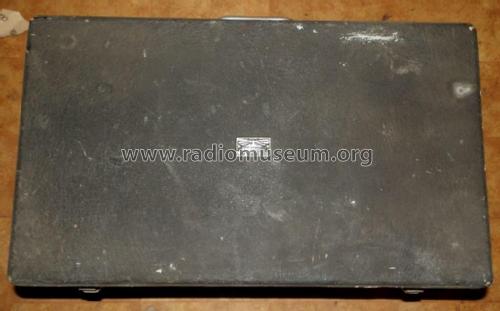

• Material
• Metal case

• from Radiomuseum.org

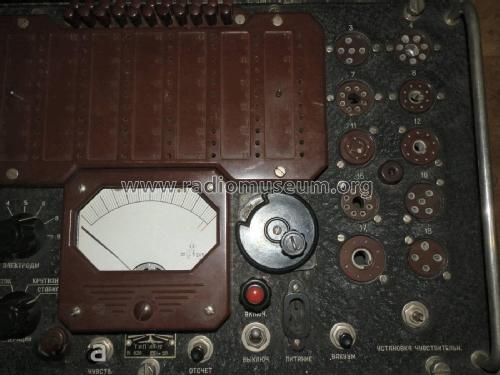

• Model: Испытатель радиоламп ИЛ-12 Tube Tester IL-12 - Frunze Radio Works, Gorky, now

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 480 x 280 x 200 mm / 18.9 x 11 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
