Antennenweiche AKF 561
Fuba, Hans Kolbe; Bad Salzdetfurth
- Country
- Germany
- Manufacturer / Brand
- Fuba, Hans Kolbe; Bad Salzdetfurth
- Year
- 1970 ??
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 313725
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

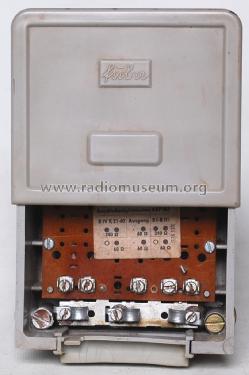

- Model: Antennenweiche AKF 561 - Fuba, Hans Kolbe; Bad
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 105 x 95 x 50 mm / 4.1 x 3.7 x 2 inch
- Notes
-
Antennenweiche AKF 561 von Fuba für die Empfangsbereiche Band I - Band III
und Band IV (Kanal 21 - 60);
Anschluss für den Antenneneingang: wahlweise 240- oder 60 Ω-Kabel;
Anschluss für den Ausgang (Ableitung): 60 Ω (Koaxial-Kabel).
Gehäuse-Rückseite mit Befestigung für Masthalterung.
- Net weight (2.2 lb = 1 kg)
- 0.250 kg / 0 lb 8.8 oz (0.551 lb)
- Author
- Model page created by Jürgen Küting. See "Data change" for further contributors.
