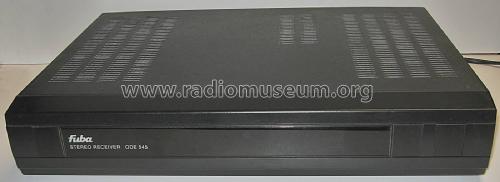

Stereo Satellite Receiver ODE545 Best.-Nr.: 18545
Fuba, Hans Kolbe; Bad Salzdetfurth
- Country
- Germany
- Manufacturer / Brand
- Fuba, Hans Kolbe; Bad Salzdetfurth
- Year
- 1994 ?
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 299115
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- SAT-IF
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Satellite Receiver ODE545 Best.-Nr.: 18545 - Fuba, Hans Kolbe; Bad
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 375 x 65 x 285 mm / 14.8 x 2.6 x 11.2 inch
- Notes
-
Satellitenreceiver zum Empfang analoger Radio- und Fernsehkanäle.
Anschlüsse: LNB (F-Type), Ant.In / UHF Out (IEC), Decoder-SCART / VCR-SCART / TV-SCART, Audio-Out R / L (RCA), Ausgang +12 V / 0 V, Anschluss "Data" (3,5 mm Klinke).
LNB-Power abschaltbar.
TV-Modulator: SAMSUNG RMUP23855FC (mit Testsignalgenerator).
Leistungsaufnahme: max. 35 W.Fertigung in fernost für Fuba.
- Net weight (2.2 lb = 1 kg)
- 3.450 kg / 7 lb 9.6 oz (7.599 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
