• Country
• Germany

• Manufacturer / Brand
• Fuba, Hans Kolbe; Bad Salzdetfurth

• Year
• 1964 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 124673

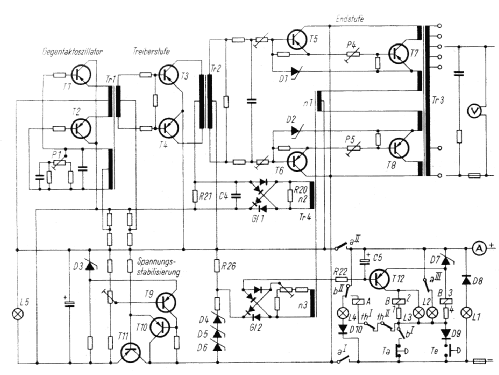

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• none

• Wave bands
• - without

• Power type and voltage
• Other, details in remarks or not known. / 20 - 30 DC Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

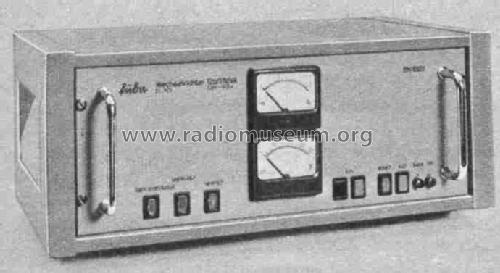

• Model: Wechselrichter BN6501 - Fuba, Hans Kolbe; Bad

• Shape
• Tablemodel, low profile (big size).

• Notes
• Eingangsspannung 20...30 V DC, Ausgangsspannung 220 V AC, Ausgangsleistung 120 VA.

• Mentioned in
• Funkschau (14.1964)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.

• Other Models

• Here you find 82 models, 67 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Fuba, Hans Kolbe; Bad Salzdetfurth
