• Country
• Japan

• Manufacturer / Brand
• Fuji Denki Seizo K.K., Japan

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 251087

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• 2SA240 2SA240 2SA58 2SA93 2SA93 2SA189 or. 2SA31 2SA189 or. 2SA31 2SB60 or. 2SB32 2SB60 or. 2SB32 2SB60A or. 2SB33 2SB263 or. 2SB200 2SB263 or. 2SB200

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / D: 6 x 1.5 / 9 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 4.75 inch = 12.1 cm

• Power out
• 0.6 W (1 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

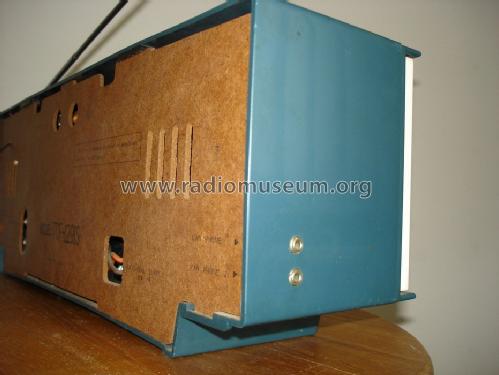

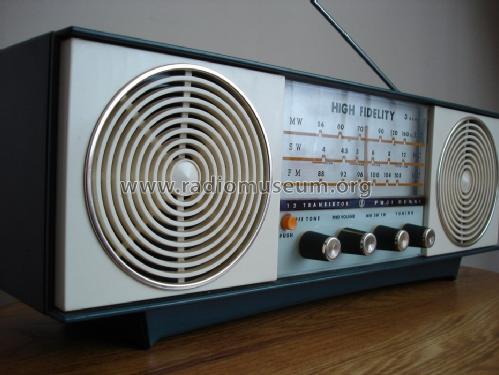

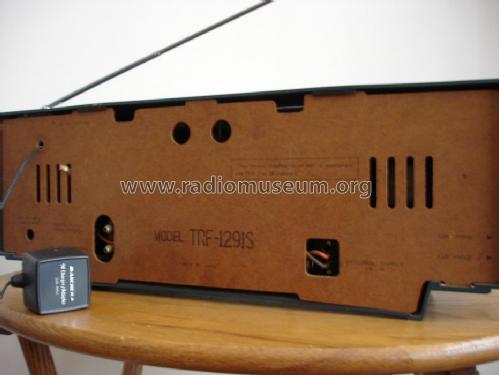

• Model: High Fidelity - 3 Band - 12 Transistor TRF-1291S - Fuji Denki Seizo K.K., Japan

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 506 x 182 x 130 mm / 19.9 x 7.2 x 5.1 inch

• Notes

• High Fidelity - 3 Band - 12 Transistor TRF-1291S has the following features:

  • AM: 540 - 1600 kHz
  • FM: 88 - 108 MHz
  • SW: 3.9 - 12 MHz
  • AFC for drift free FM reception
  • FM built-in telescopic antenna
  • AM/SW built-in ferrite rod antenna
  • Off/On Variable tone control
  • Two earphone jacks
  • Two 4.75" speakers for full rich hi-fi sound
  • Phono input terminals for external record player
  • Illuminated slide-rule dial for easy station identification
  • Weight listed is without batteries



• Net weight (2.2 lb = 1 kg)
• 2.7 kg / 5 lb 15.2 oz (5.947 lb)

• Literature/Schematics (1)
• FUJI DENKI REVIEW Vol.9-No.3, 1963, page 90-91 "Introduction of Products...TRF1291S"
