Transceiver FM 144 Multi 11

Fukuyama Electronics, FDK; Hoya-City, Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1976 ??
  • Category
  • Amateur Equipment (Other, but not Key)
  • Radiomuseum.org ID
  • 342223

 Technical Specifications

  • Number of Transistors
  • 44
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 10700/455 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 3 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Transceiver FM 144 Multi 11 - Fukuyama Electronics, FDK;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 163 x 56 x 220 mm / 6.4 x 2.2 x 8.7 inch
  • Notes

  • Transceiver operating in VHF 144-146 MHz (144-148 in USA) FM mode. 23 channels.
    Rotary switch selection SCAN channel manual or automatic 4 channel/sec..
    Transmitter: Wave type F3. Output: Hi 10 W, Low about 1 W. Antenna impedance 50 Ω.
    Dynamic Microphone 500 Ω
    Receiver: Double conversion superheterodyne. Sensitivity: Less than 0.5 µV.

    Semiconductor used: 44 Transistors, 3 ICs, 54 Diodes and 1 SCR.


  • Mentioned in

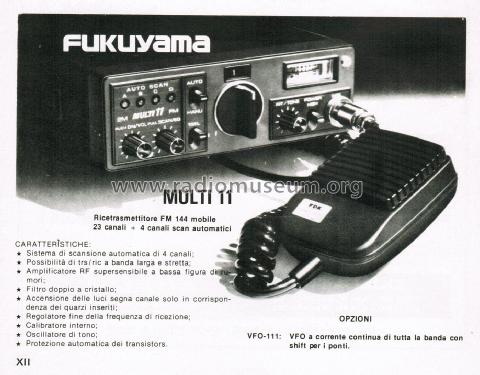

  • -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 3, March 1976.)
  • Literature/Schematics (1)
  • Original "Instruction Manual"
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
