• Country
• Japan

• Manufacturer / Brand
• Funai Electric Co., Ltd.; Osaka

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 269000

• Number of Transistors
• 6

• Semiconductors
• 2SA102 2SA101 2SA101 2SB175 MA23 2SB172 2SB172

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / AA: 4 × 1,5 Volt

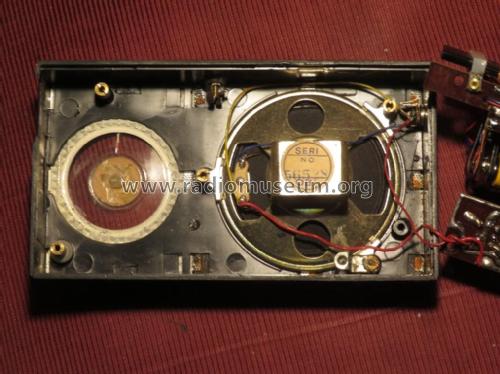

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

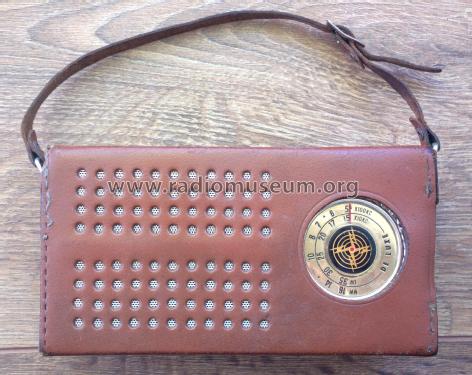

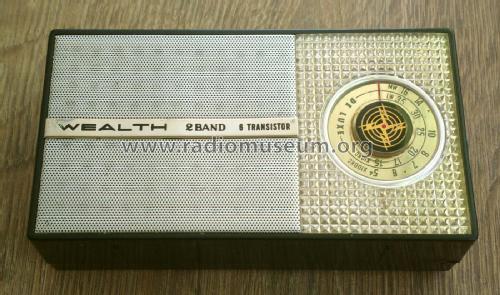

• Model: Wealth 2 Band 6 Transistor De Luxe 7L60 - Funai Electric Co., Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 158 x 86 x 44 mm / 6.2 x 3.4 x 1.7 inch

• Literature/Schematics (1)
• Külföldi tranzisztoros készülékek adatai, Budapest 1964, MHSZ

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
