• Year
  • 1967/1968
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 14644
    • alternative name: VEB(K) Funkmechanik; Neustadt

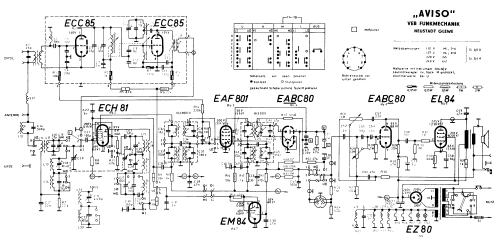

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

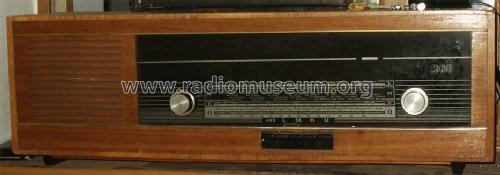

  • Model: Aviso 8211 - Funk- und Feinmechanik
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 705 x 207 x 201 mm / 27.8 x 8.1 x 7.9 inch
  • Notes
  • Aviso 8211, ein Mittelsuper in einem mattierten oder polierten Holzgehäuse. Das Chassis entspricht dem Aviso 8111.
  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
  • Price in first year of sale
  • 426.00 DM
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
