la musica 62L3
Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75027
-
- alternative name: VEB(K) Funkmechanik; Neustadt

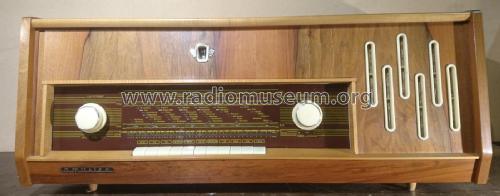

own collection
own collection
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: la musica 62L3 - Funk- und Feinmechanik
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 790 x 320 x 300 mm / 31.1 x 12.6 x 11.8 inch
- Notes
- 4 Klangtasten, Gegentakt-Endstufe. Variante 62L2 nur 2 Lautsprecher seitlich (nur 750 mm breit). Chassis von "Fidelio", Anschlüsse modernisiert und mit Ferritantenne erweitert. Wahrscheinlich nie in Serienproduktion.
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Collector info (Sammler)
- Literature/Schematics (2)
- Funk-Technik (FT) (6/1962, S. 169 / Messebericht Leipzig)
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
