Weimar 5140A

• Country
• Germany

• Manufacturer / Brand
• Funk- und Feinmechanik Neustadt/Glewe, VEB(K) (Ostd.)

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 14639

• • alternative name: VEB(K) Funkmechanik; Neustadt

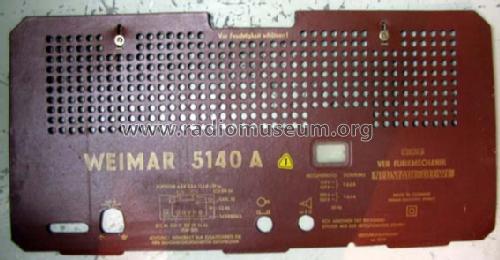

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 or EAF801 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Weimar 5140A - Funk- und Feinmechanik

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 310 x 225 mm / 24.4 x 12.2 x 8.9 inch

• Notes
• In Stern-Radio Sonneberg 1964 konstruiert u. gebaut, ab 1966 nach "Funkmechanik Neustadt/Glewe" verlagert. Erste Modelle noch mit EBF89, dann mit EAF801. Als Weimar 5340B u. 5340C Exportmodell mit UKW bis 104 MHz bzw. zusätzlich Ferritantenne.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 430.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967

• Literature/Schematics (1)
• -- Original-techn. papers.
