• Country
• Germany

• Manufacturer / Brand
• Funkschau, Franzis-Verlag; München

• Year
• 1964

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 203369

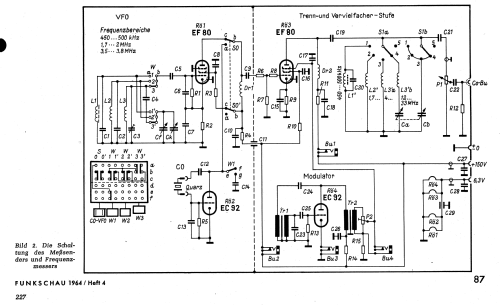

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF80 EC92 EF80 EC92

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Powered by external power supply or a main unit. / 6,3 & 150 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Meßsender - Frequenzmesser - Funkschau, Franzis-Verlag;

• Shape
• Console with Push Buttons.

• Notes
• Autor: Adolf Vogel DL3SZ. Meßsender, Frequenzmessr, Steuersender und Röhrensummer in einem Gerät. Funkschau 4/1964.

• Source of data
• Funkschau

• Author
• Model page created by Rudolf Müller. See "Data change" for further contributors.
