Meßsender M6
Funkschau, Franzis-Verlag; München
- Country
- Germany
- Manufacturer / Brand
- Funkschau, Franzis-Verlag; München
- Year
- 1948
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 183991
Funkschau. Vorderseite mit Scala

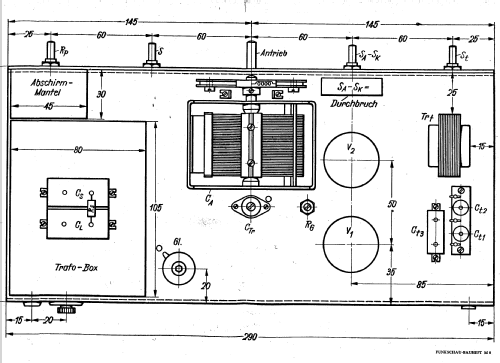

Funkschau. Draufsicht
aus Baumappe Unterseite
Foto-Rückseite aus Baumappe
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 0
- Main principle
- something special ? Please give information (notes)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Meßsender M6 - Funkschau, Franzis-Verlag;
- Shape
- Tablemodel, with any shape - general.
- Notes
- Einfacher Meßsender für Werkstatt und Labor. Triodenoszillator für HF in Rückkoppelungsschaltung mit 5 umschaltbaren Frequenzbereichen von 98-13500 kHz.
- Mentioned in
- Funkschau
- Author
- Model page created by Rudolf Müller. See "Data change" for further contributors.
