• Country
• Germany

• Manufacturer / Brand
• Funkschau, Franzis-Verlag; München

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 125952

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 EF89 EF89 EF89 EM71 EAA91

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 11 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110/ 220 Volt

• Material
• Metal case

• from Radiomuseum.org

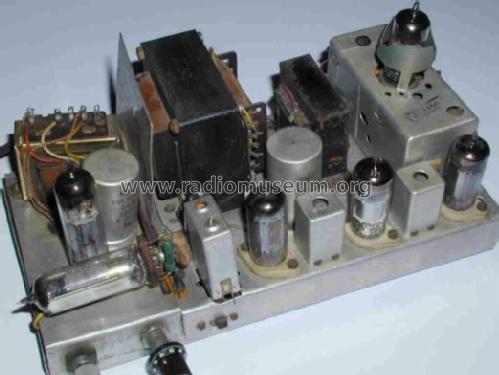

• Model: UKW-Super-Vorsatz - Funkschau, Franzis-Verlag;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 210 x 150 x 150 mm / 8.3 x 5.9 x 5.9 inch

• Notes
• Hochempfindlicher UKW-Empfänger 87,5 - 100 MHz, HIFI-Eignung, Telefunken-L-Vario-Abstimmung i.geschlossener Einheit, 3 ZF-Stufen, Magisches Auge, Großmann-Rundskala mit Feintrieb; Leistner-Metallgehäuse Nr.15,

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Literature/Schematics (1)
• Bauanleitung Funkschau Heft 19, 1957, S.539-541

• Author
• Model page created by Sieghart Brodka † 24.2.17. See "Data change" for further contributors.
