• Country
• Germany

• Manufacturer / Brand
• Funk-Technik, Labor der Zeitschrift; Berlin

• Year
• 1956 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 248543

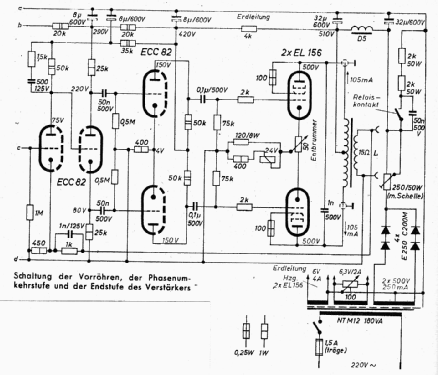

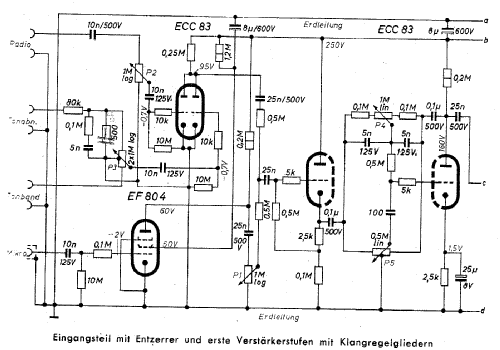

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF804 ECC83 ECC83 ECC82 ECC82 EL156 EL156

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 25 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Hififon - Qalitätsverstärker - Funk-Technik, Labor der

• Shape
• Tablemodel, low profile (big size).

• Notes

• Hififon - Qalitätsverstärker.
  Freqenzbereich: 20....20000 Hz.
  Stromaufnahme: 180W

• Mentioned in
• Funk-Technik (FT) (4/56 S.97)

• Author
• Model page created by Egon Strampe. See "Data change" for further contributors.
