• Country
• Germany

• Manufacturer / Brand
• Funk-Technik, Labor der Zeitschrift; Berlin

• Year
• 1960 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 212358

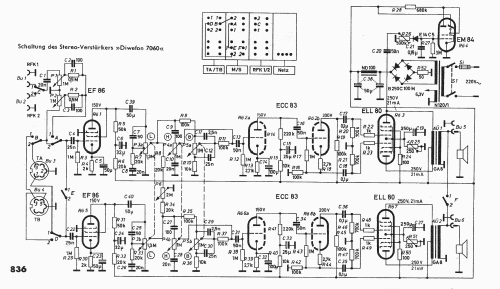

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF86 EF86 ECC83 ECC83 EM84 ELL80 ELL80

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 16 W (unknown quality)

• from Radiomuseum.org
• Model: Stereo-Verstärker Diwefon-7060 - Funk-Technik, Labor der

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Eingänge: TA TB

• Mentioned in
• Deutsche Funk-Technik (Deutsche Funktechnik) [DDR] (23/60 S.836)

• Author
• Model page created by Egon Strampe. See "Data change" for further contributors.
