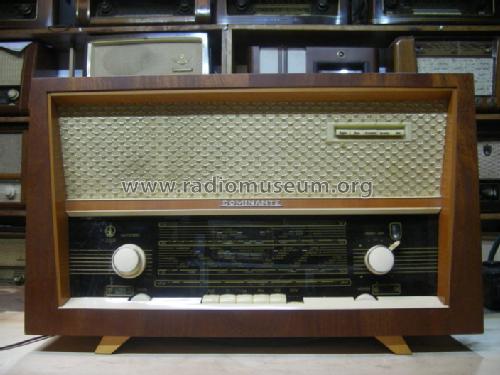

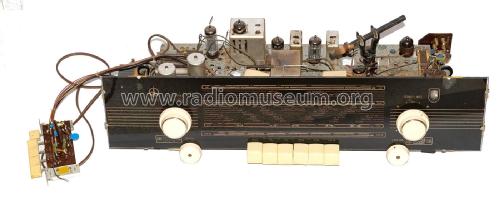

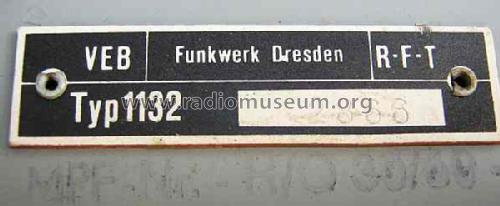

AM/FM Super-Dominante A122 Typ 1132

• Country
• Germany

• Manufacturer / Brand
• Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 16520

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UCC85 UCH81 UF89 UF89 UM80 UABC80 UL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 453/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: AM/FM Super-Dominante A122 Typ 1132 - Funkwerk Dresden, VEB, RFT

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 670 x 410 x 280 mm / 26.4 x 16.1 x 11 inch

• Notes
• W102 in Allstromausführung, ab 1962 in Stassfurt gebaut als "62"

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 610.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967

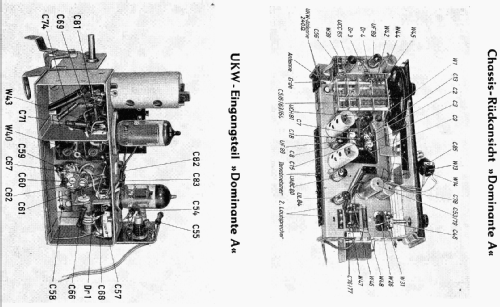

• Literature/Schematics (1)
• -- Original-techn. papers.
