• Country
• Germany

• Manufacturer / Brand
• Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

• Year
• 1960 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 247820

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF762 EF762 EF762 EF762 EF762 ECL82 EZ80 StR85/10

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

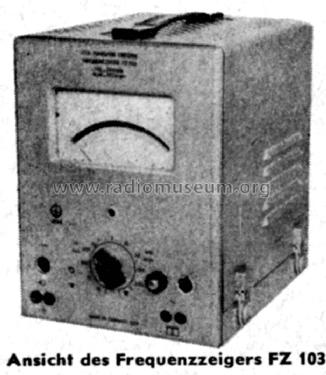

• Model: Frequenzzeiger FZ103 - Funkwerk Dresden, VEB, RFT

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 190 x 255 x 250 mm / 7.5 x 10 x 9.8 inch

• Notes

• Gerät zur Messung der Frequenz von Wechselspannungen von 1 Hz ...300 kHz in 10 Bereichen. Eingangsspannung min. 0,1 V_eff, max. 25 V_eff. Messunsicherheit <+/- 2 % vom Bereichsendwert.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Mentioned in
• Radio und Fernsehen (DDR) (1961, H. 17)

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
