• Country
• Germany

• Manufacturer / Brand
• Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

• Year
• 1956 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 160635

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AC7 6AC7 EZ80 GR22-276 GR80

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

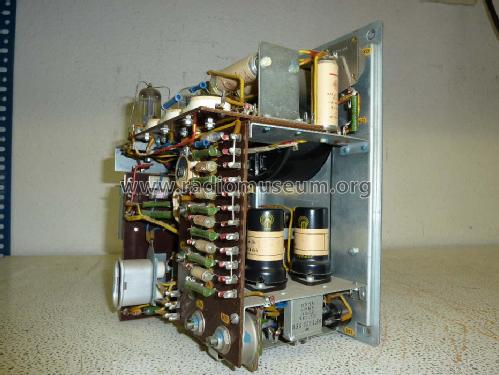

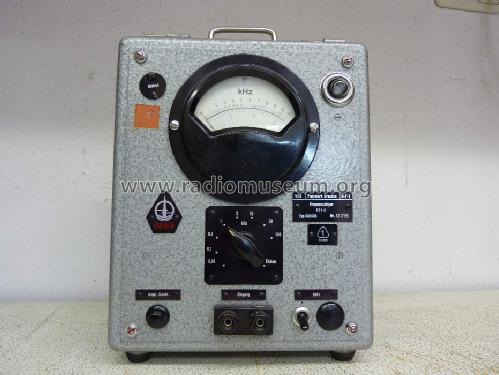

• Model: Frequenzzeiger FZ1-2 KM606 [EZ80] - Funkwerk Dresden, VEB, RFT

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 230 x 290 x 180 mm / 9.1 x 11.4 x 7.1 inch

• Notes
• Frequenzbereich 5 Hz bis 100 kHz in 8 Messbereichen. Die ersten Geräte noch mit 6X5 statt EZ80.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 702.00 DM

• Mentioned in
• Anders, Schaltungssammlung der Meßgeräte, 1977

• Literature/Schematics (1)
• Katalog

• Author
• Model page created by Wolfgang Leifer. See "Data change" for further contributors.
