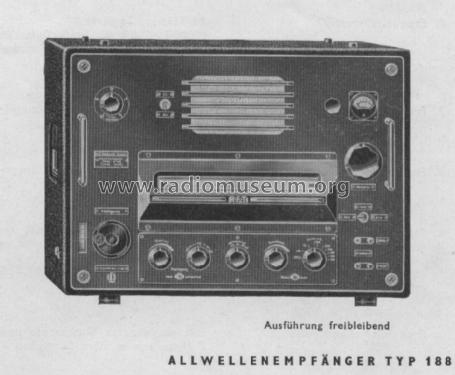

Allwellenempfänger "Erfurt" TYP 188 (alt)
Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
- Country
- Germany
- Manufacturer / Brand
- Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
- Year
- 1954
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 355753
-
- Brand: FWE
- Number of Tubes
- 15
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Metal case
- from Radiomuseum.org
- Model: Allwellenempfänger "Erfurt" TYP 188 - Funkwerk Erfurt, VEB, RFT Ostd
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 550 x 402 x 350 mm / 21.7 x 15.8 x 13.8 inch
- Notes
-
ECL81: alternativ ECL11
Erste Ausführung, wahrscheinlich so nicht in Serie gegangen.
1957 in Serie mit teilweise anderer Röhrenbestückung, siehe Modell "Allwellenempfänger "Erfurt", AWE 188"
- Net weight (2.2 lb = 1 kg)
- 45 kg / 99 lb 1.9 oz (99.119 lb)
- Mentioned in
- Rundfunk- und Fernseh-Katalog 1953/54 (RFT Katalog 1954, Rundfunkgeräte, Elektroakustik, Sender, III-18-70---Lp 22856-54)
- Literature/Schematics (2)
- on.line 03/2018, Elektromuseum Erfurt
- Author
- Model page created by Wolfgang Müllner. See "Data change" for further contributors.
