• Country
• Germany

• Manufacturer / Brand
• Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH

• Year
• 1954 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 126752

• • Brand: FWE

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF12 EF14 EF14 EBF11 AZ12 STV280/80 STV150/20 EW3-9V/1,4A

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

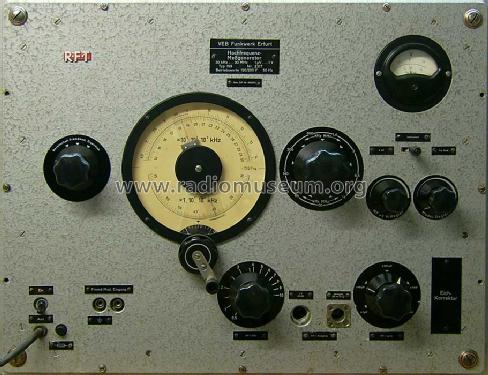

• Model: Hochfrequenz-Messgenerator 159 - Funkwerk Erfurt, VEB, RFT Ostd

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 430 x 330 mm / 21.7 x 16.9 x 13 inch

• Notes
• Ausgangsfrequenz regelbar von 30 kHz...30 MHz <± 1% in 9 Bereichen, intern mit 400 Hz modulierbar. HF-Ausgangsspannung regelbar von 1 µV...1 V.

• Net weight (2.2 lb = 1 kg)
• 32 kg / 70 lb 7.8 oz (70.485 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by a member from D. See "Data change" for further contributors.
