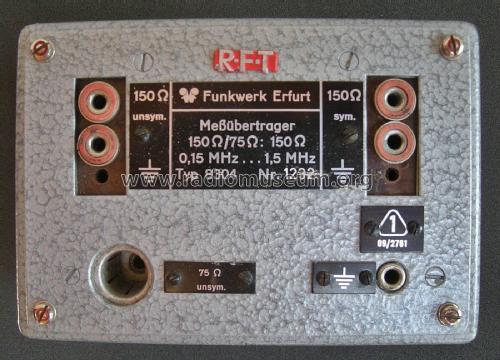

Meßübertrager 150Ω/75Ω:150Ω 8304
Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
- Country
- Germany
- Manufacturer / Brand
- Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
- Year
- 1960 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 282945
-
- Brand: FWE
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Meßübertrager 150Ω/75Ω:150Ω 8304 - Funkwerk Erfurt, VEB, RFT Ostd
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 135 x 85 x 100 mm / 5.3 x 3.3 x 3.9 inch
- Notes
-
Impedanzwandler für Messzwecke. Eingänge: 150 Ω / 75 Ω, unsymmetrisch; Ausgang: 150 Ω, symmetrisch. Frequenzbereich: 0,15...1,5 MHz.
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
