Verstärker 10 MHz S-2201.020
Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
- Country
- Germany
- Manufacturer / Brand
- Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
- Year
- 1985 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 165820
-
- Brand: FWE

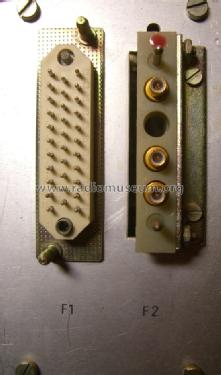

Rückseite mit Anschlüssen
Ansicht Eingangsteiler mit den Relais
- Number of Transistors
- 25
- Semiconductors
- Main principle
- Radio Frequency Amplification only
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Verstärker 10 MHz S-2201.020 - Funkwerk Erfurt, VEB, RFT Ostd
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 59 x 98 x 285 mm / 2.3 x 3.9 x 11.2 inch
- Notes
- Verstärkereinschub zum Frequenzzähler 100 MHz S-2201.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Till Krüger. See "Data change" for further contributors.
