Puck 1151.7

• Country
• Germany

• Manufacturer / Brand
• Funkwerk Halle (FWH), VEB; Halle

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17532

• Picture
• Schematics

Previous Next

Previous Next

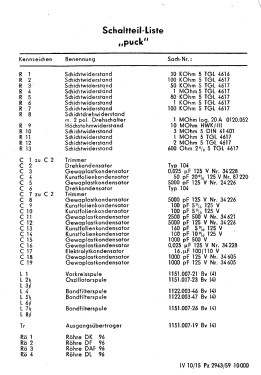

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK96 DF96 DAF96 DL96

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1,5/85 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.08 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

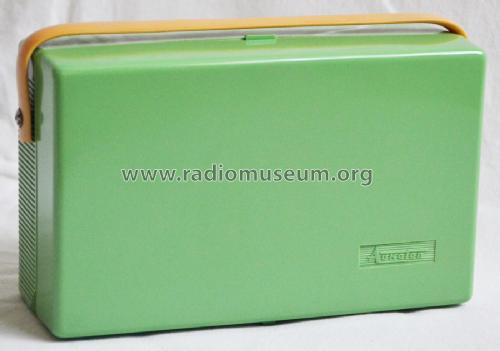

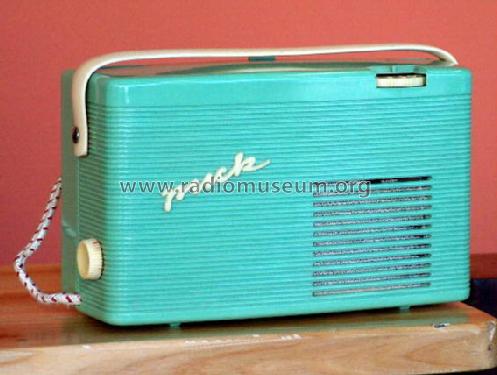

• Model: Puck 1151.7 - Funkwerk Halle FWH, VEB; Halle

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 192 x 119 x 76 mm / 7.6 x 4.7 x 3 inch

• Notes
• Gehäuse aus Meladur in rot, grün, blau. (Vorsicht! Wird nach Jahren sehr spröde!) - Netzteil 1155.1A1 optional statt Anodenbatterie zum Einsetzen (26,80 M).

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Price in first year of sale
• 155.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 13, 1953

• Mentioned in
• Historische Radios Band IV (175)

• Literature/Schematics (1)
• Radio und Fernsehen 21/1959

• Picture reference
• Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
