• Country
• Germany

• Manufacturer / Brand
• Funkwerk Köpenick, VEB, RFT; Berlin-Köpenick (Ostd.)

• Year
• 1962–1971 ??

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 82592

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• EF89 ECH81 ECC85 ECF82 E80CF ECL82 EAA91 EF861

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220, 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

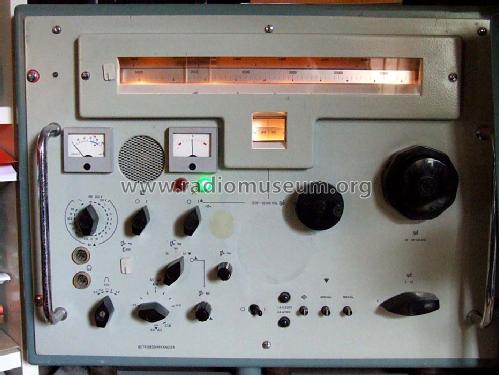

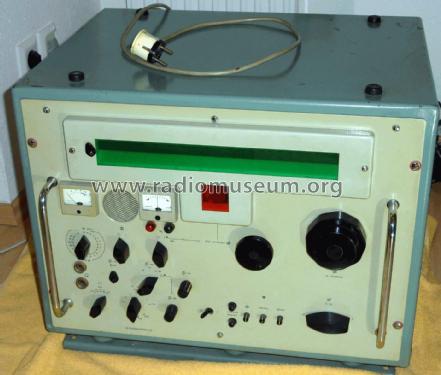

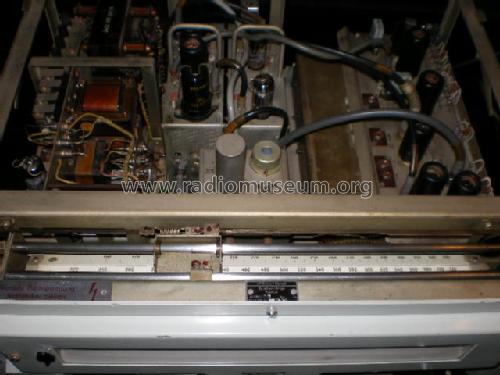

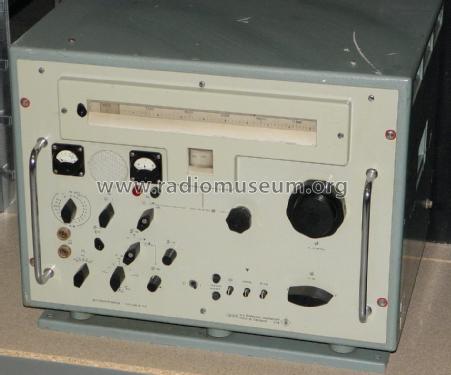

• Model: Betriebsempfänger 1340.21 - Funkwerk Köpenick, VEB, RFT;

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 565 x 450 x 460 mm / 22.2 x 17.7 x 18.1 inch

• Notes
• • 14 kHz - 30,1 MHz in 12 Bereichen
  • AM/CW/MCW
  • Rastoszillatoreinrichtung
  • ZF-Bandbreiten
    • 6,4 kHz
    • 4,0 kHz
    • 2,2 kHz
    • 1,2 kHz
    • 0,6 kHz
  • Zubehör
    • DM01 (FSK)
    • DM02 (Duplex-FSK)
    • AD02 (Diversity-Betrieb)
    • DM03 (SSB-Demodulator)
  • Bis auf Gehäuse identische Einschubausführung hat Modellnummer 1340.18.
  • Wurde vor 1965 im Funkwerk Dabendorf hergestellt
  • Einsatzgebiete
    • Seefunk
    • Überwachung
    • Behörden
    • Botschaften



  Röhren nur einfach gelistet.

• Net weight (2.2 lb = 1 kg)
• 60 kg / 132 lb 2.5 oz (132.159 lb)
