• Country
• Germany

• Manufacturer / Brand
• Funkwerk Kölleda, VEB, RFT, - vorm. Neutrowerk, Neutro-Werk (Ostd.)

• Year
• 1954–1957

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 118910

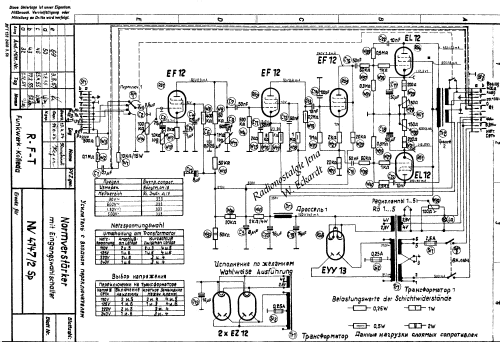

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF12 EF12 EF12 EL12 EL12 EYY13

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 25 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Normverstärker 25W NV4147/2 - Funkwerk Kölleda, VEB, RFT, -

• Shape
• Chassis only or for «building in»

• Notes
• Normverstärker-Einschub, mit Eingangswahlschalter; auch mit 2× EZ12 statt EYY13. Einschub auch im Stahlblechgehäuse als separater Verstärker. 100-V-Ausgang für ELA.

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
