Lautsprecherchassis L2259PBO
Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)
- Year
- 1960 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 180566
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Lautsprecherchassis L2259PBO - Funkwerk Leipzig, VEB, - vorm.
- Dimensions (WHD)
- 215 x 155 x 80 mm / 8.5 x 6.1 x 3.1 inch
- Notes

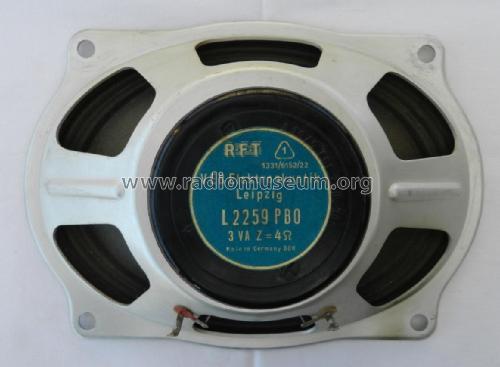

- Der kleine Bruder des L2659PBO, jedoch mit 2 Watt und 3,6 Ohm. Es gibt noch eine gleichnamige Variante dieses Typs vom Elektrogerätebau Leipzig mit 3 Watt und 4 Ohm.
- Author
- Model page created by Carsten Diesing. See "Data change" for further contributors.
