• Country
• Germany

• Manufacturer / Brand
• Funkwerkstätten Bernburg, PGH; Bernburg/Saale (Ostd.)

• Year
• 1961 ?

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 306278

• • alternative name: Bernburg Funkw. A. Ulrich
  • Brand: Radio Jäckel

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Erdschiene 501/4 - Funkwerkstätten Bernburg, PGH;

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 115 x 16 x 16 mm / 4.5 x 0.6 x 0.6 inch

• Notes

• Metallschiene zur Erdung von bis zu 4 Koaxialkabeln einer Gemeinschaftsantennenanlage.

• Net weight (2.2 lb = 1 kg)
• 0.055 kg / 0 lb 1.9 oz (0.121 lb)

• Mentioned in

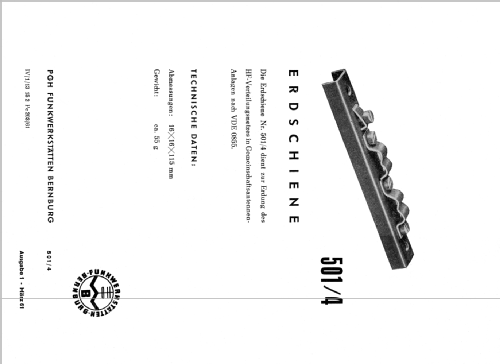

• -- Original-techn. papers.

• Author
• Model page created by Michael Mischke. See "Data change" for further contributors.
