D.C. Oscilloscope 1684D/2
Furzehill Laboratories Ltd.; Hertfordshire
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Furzehill Laboratories Ltd.; Hertfordshire
- Year
- 1949 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 356988
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: D.C. Oscilloscope 1684D/2 - Furzehill Laboratories Ltd.;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-

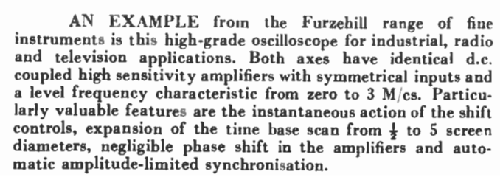

A high-grade oscilloscope for industrial, radio and television applications.
Both axes have identical D.C. coupled high sensitivity amplifiers with symmetrical inputs and a level frequency characteristic from zero to 3 MHz.
Particularly valuable features are the instantaneous action of the shift controls, expansion of the time base scan from ½ to 5 screen diameters, negligible phase shift in the amplifiers, and automatic amplitude-limited synchronisation.
