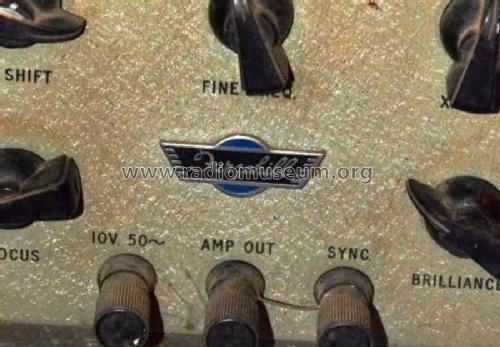

High-sensitivity Audio Oscilloscope O-120
Furzehill Laboratories Ltd.; Hertfordshire
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Furzehill Laboratories Ltd.; Hertfordshire
- Year
- 1954
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 242262
Advertisement 1955
- Number of Tubes
- 10
- Valves / Tubes
- Wave bands
- - without
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: High-sensitivity Audio Oscilloscope O-120 - Furzehill Laboratories Ltd.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 220 x 430 x 400 mm / 8.7 x 16.9 x 15.7 inch
- Notes
-
Portable 2.75" oscilloscope with high sensitivity (2 mV/cm r.m.s.) Push-pull plate deflection, external terminal connections to X amplifier and CRT available. 3c/s to 25 Kc/s (as per advertisement).
Vertical amplifier with 5 - 20 Kc/s bandwidth (as stated in the Handbook), instantaneous shifts, amplitude limitation in the synchronization circuits.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Mentioned in
- Handbook of Scientific Instruments and Apparatus, 1954
- Author
- Model page created by Jose Assuncao. See "Data change" for further contributors.
