• Country
• Spain

• Manufacturer / Brand

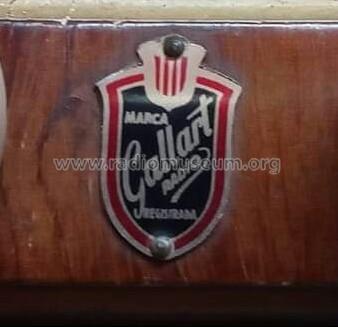

• Gallart Radio; Barcelona

• Year
• 1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 330584

• Number of Tubes
• 5

• Valves / Tubes

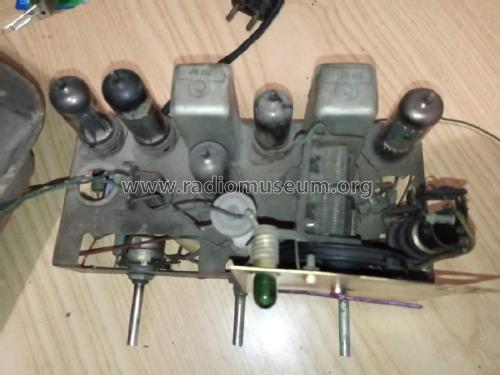

• UCH81 UAF42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: A-35-Bis - Gallart Radio; Barcelona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 150 x 130 mm / 9.8 x 5.9 x 5.1 inch

• Notes

• La UCH81, posiblemente fuese UCH41 de origen y habría sido cambiada en alguna reparación.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
