• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1954 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41239

• • Brand: Coronado

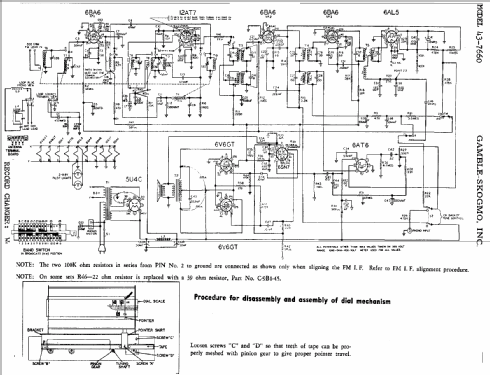

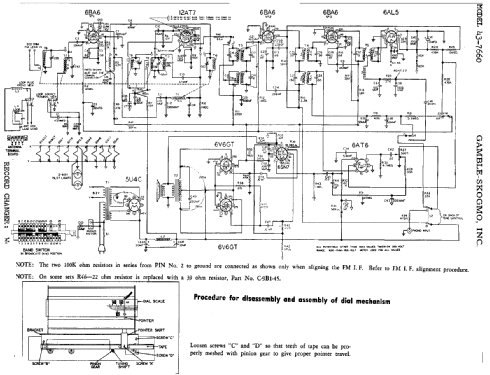

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BA6 12AT7 6BA6 6AL5 6AT6 6SN7 6V6GT 6V6GT 5U4G

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• from Radiomuseum.org
• Model: 43-7661 - Gamble-Skogmo, Inc.;

• Notes
• Built in loop antenna for BC. Record changer:Webster model 50.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 22, covering 1951

• Other Models

• Here you find 705 models, 331 with images and 635 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Gamble-Skogmo, Inc.; Minneapolis, MN
