Coronado 43-8213 Ch= 45D17G
Gamble-Skogmo, Inc.; Minneapolis, MN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 41257
-
- Brand: Coronado
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
- Power out
- 0.9 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Coronado 43-8213 Ch= 45D17G - Gamble-Skogmo, Inc.;
- Shape
- Tablemodel, low profile (big size).
- Notes
- The model Coronado 43-82131 made by Gamble-Skogmo, Inc. is an AC-DC operated superheterodyne receiver with self contained loop antenna. SAMS Photofact title states: "Manufacturer" Coronado Minneapolis, Minn. - Los Angeles, Calif. Broadcast range = 540 - 1600 kc - compare model 43-6301 which range is 535-1725 kc.
Collector's Guide to AR7.Ed. Slusser tube --> see under Coronado.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition)
- Literature/Schematics (1)

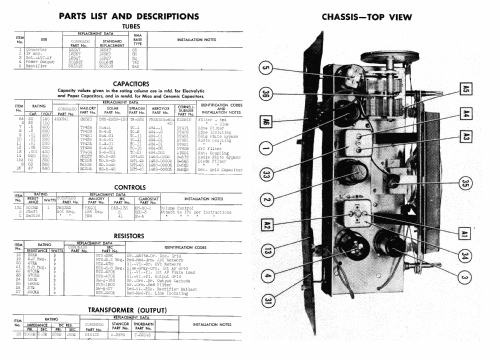

- Photofact Folder, Howard W. SAMS (Date 11/46 Set 7, Folder 467-5)
