• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41272

• • Brand: Coronado

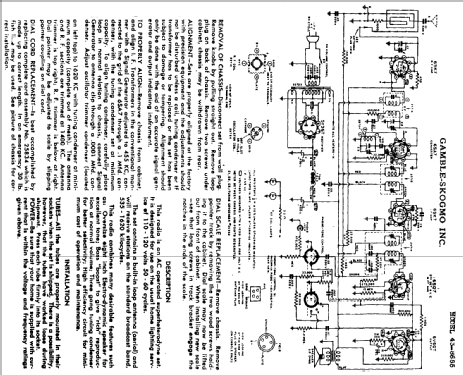

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Coronado 43-8685 - Gamble-Skogmo, Inc.;

• Shape
• Tablemodel, low profile (big size).

• Notes

• The model 43-8685 is produced by Coronado Mfg. Co. and sold also by Gamble-Skogmo and Western Auto Supply with the same model number. The model Coronado 43-8685 has a self Contained Loop Antenna.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date Jan-47, set 11, folder 471-4)
