- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1941 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 120276
-
- Brand: Coronado

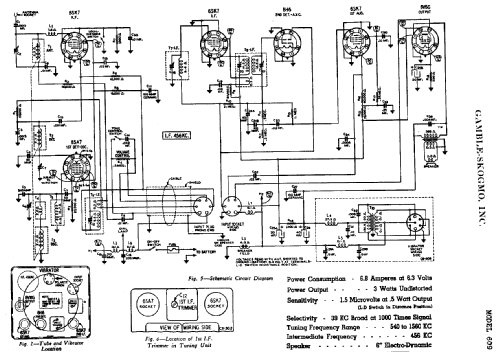

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6.3 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- from Radiomuseum.org
- Model: 6C9 - Gamble-Skogmo, Inc.;
- Notes
- Sync.vibrator for +B.
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
