• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41424

• • Brand: Coronado

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SA7 6SK7 6SF7 6SJ7 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Power out
• 2.3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

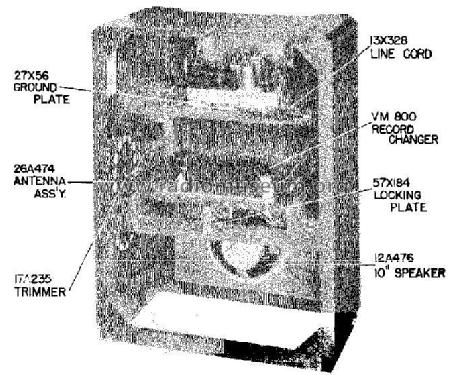

• Model: Coronado 94RA1-43-7605A - Gamble-Skogmo, Inc.;

• Shape
• Console with any shape - in general

• Notes
• The Coronado 94RA1-43-7605A made by Gamble-Skogmo, Inc. in Minneapolis is an AC operated combination phono-radio, 2 band superheterodyne receiver with loop antenna. Short wave band is from 5.75 to 18.3 mc.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 7-49, 4913-5, set 65, folder 5)

• Other Models

• Here you find 705 models, 331 with images and 635 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Gamble-Skogmo, Inc.; Minneapolis, MN
