• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41425

• • Brand: Coronado

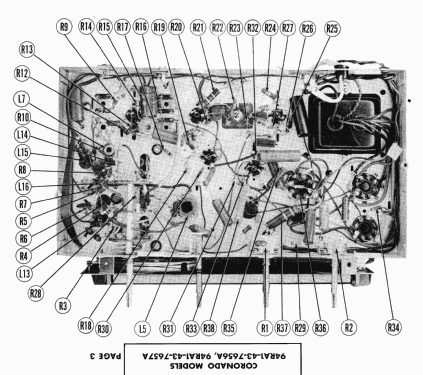

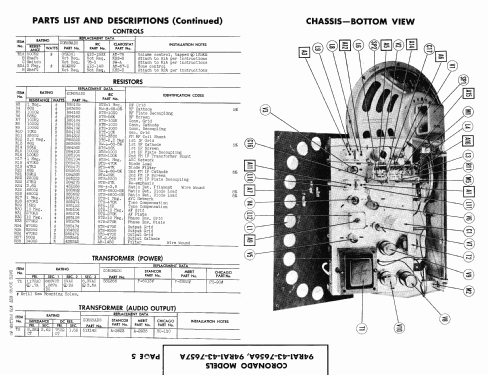

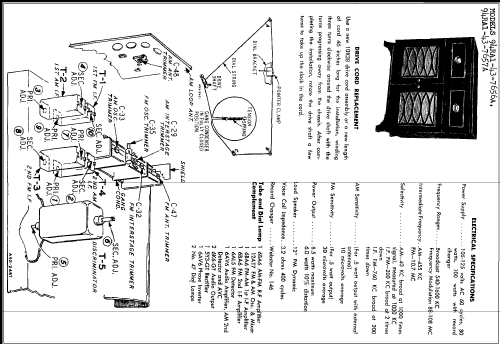

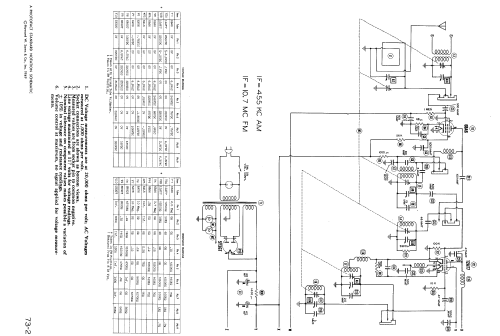

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BA6 12AT7 6BA6 6BA6 6AL5 6AV6 6AV6 6K6GT 6K6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.375 inch = 28.9 cm

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Coronado 94RA1-43-7656A - Gamble-Skogmo, Inc.;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• The Coronado 94RA1-43-7656A and 94RA1-43-7657A made by Gamble-Skogmo, Inc. are AC operated combination phono-radios, AM-FM receivers with loop antenna. One of them is color Blonde, the other of color Mahagony. The record changer is a Webster model 146.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 10-49, set 73, folder 2)
