• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 350020

• • Brand: Coronado

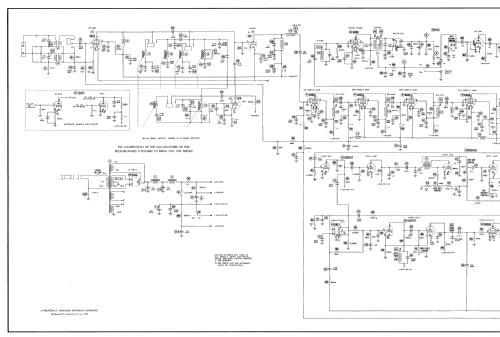

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6AG5 6J6 or 12AT7 6AU6 6AU6 6AU6 6AU6 6AL5 12AT7 or 12AU7 6AU6 6AU6 6T8 6K6GT 6SN7GT 6SN7GT 6AL5 6SN7GT 6BG6G 6W4GT 1X2 5U4G 12LP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Coronado 05TV1-43-9006A - Gamble-Skogmo, Inc.;

• Shape
• Tablemodel, with any shape - general.

• Notes

• Coronado model 05TV1-43-9006A is a 12” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture tube 12LP4A. Typo in tube parts list , tube 18
  6W4GG has to be 6W4GT.





• Literature/Schematics (1)

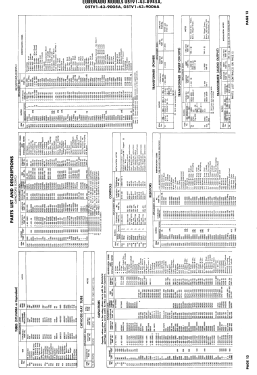

• Photofact Folder, Howard W. SAMS (Set 145, folder 5, dated 9-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
