• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 351607

• • Brand: Coronado

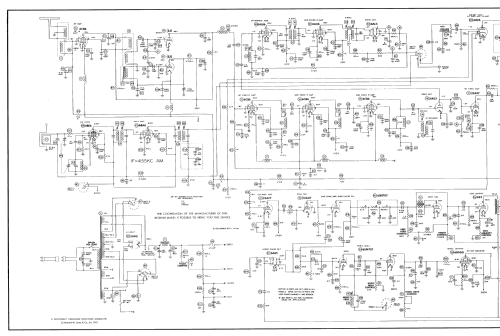

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 25

• Valves / Tubes
• 6CB6 or 6AG5 6J6 6CB6 6CB6 6CB6 6AL5 12AT7 12AU7 6AU6 6AU6 6AU6 6AL5 6AV6 6AQ5 6SN7GT 6S4 6AL5 6SN7GT 6BG6G 6W4 1B3GT 5U4G 6BE6 6BA6 17BP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.25 inch = 18.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Coronado 15TV2-9101A - Gamble-Skogmo, Inc.;

• Shape
• Console with any shape - in general

• Notes

• Coronado model 15TV2-9101A is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped witha TV-AM-Phono combination receiver, VHF tuner 25A1087 and picture tube 17BP4.



• Literature/Schematics (1)

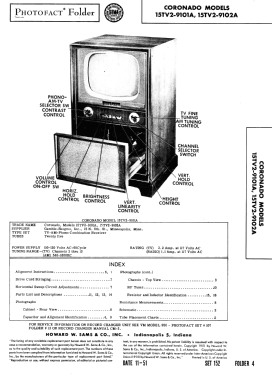

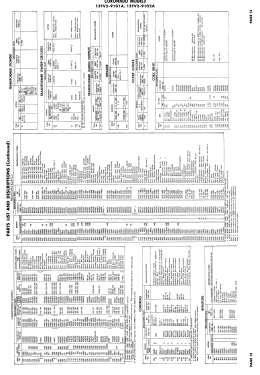

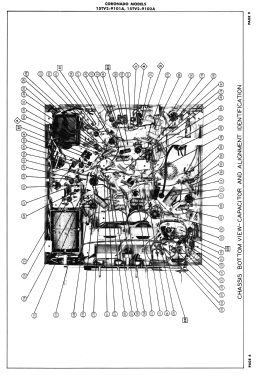

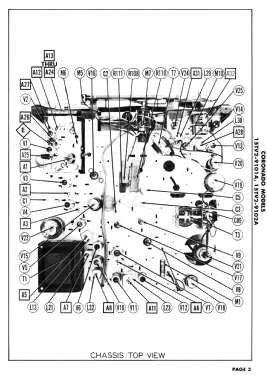

• Photofact Folder, Howard W. SAMS (Set 152, folder 4, dated 11-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
