• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 346469

• • Brand: Coronado

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7GT 6SA7GT 6SK7GT 6SQ7GT 6K6GT 5W4GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

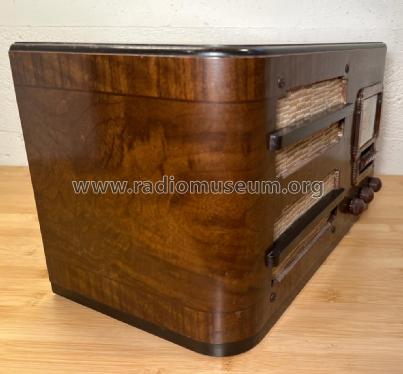

• Model: Coronado 910 - Gamble-Skogmo, Inc.;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16.5 x 9 x 8 inch / 419 x 229 x 203 mm

• Author
• Model page created by Steve Dymale. See "Data change" for further contributors.
