Coronado RA1-9246A
Gamble-Skogmo, Inc.; Minneapolis, MN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 280556
-
- Brand: Coronado

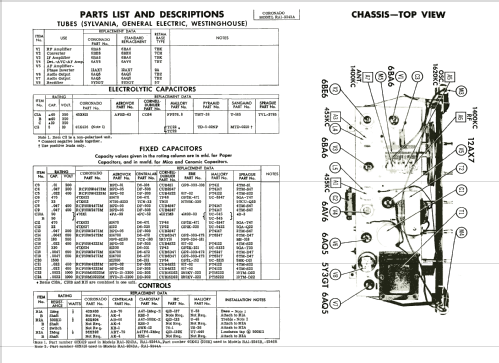

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles 105-120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Coronado RA1-9246A - Gamble-Skogmo, Inc.;
- Shape
- Console with any shape - in general
- Notes
-
Coronado model RA1-9246A is a AC Operated AM-Phono Combination Superheterodyne Receiver. Speakers SP1 5inch , SP2 15 inch.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 337 Folder 2 Dated 11-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
