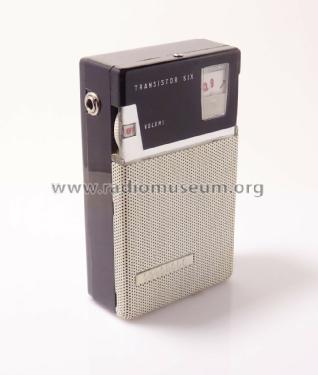

Coronado Transistor Six Little Gem RA50-9900 (43-9900)
Gamble-Skogmo, Inc.; Minneapolis, MN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 314579
-
- Brand: Coronado
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Coronado Transistor Six Little Gem RA50-9900 - Gamble-Skogmo, Inc.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.2 x 3.75 x 1 inch / 56 x 95 x 25 mm
- Notes
-
CD marks. See also Coronado RA50-9900A.
Made in Japan
- Mentioned in
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 70 (43-9900), page 71 (RA50-9900A))
- Author
- Model page created by Aldo Andreani. See "Data change" for further contributors.
