• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 308150

• • Brand: Coronado

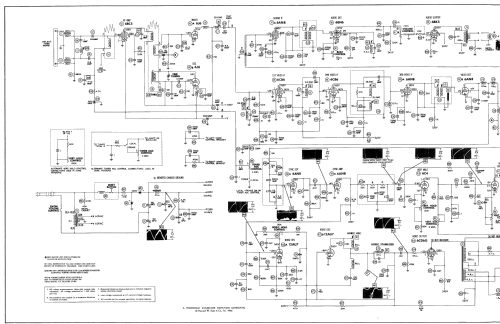

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6CB5 6J6 6CB6 6CB6 6AN8 6AN8 6AN8 6BN6 6BK5 6C4 6S4A 12AU7 6CD6G 6AX4GT 1B3GT 21ALP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 115V = 110 -115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Coronado TV1-9320A - Gamble-Skogmo, Inc.;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Coronado model TV1-9320A is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner D211-25205-1 and picture tube 21ALP4A.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 326 Folder 6 dated 8-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
