Coronado TV1-9400A
Gamble-Skogmo, Inc.; Minneapolis, MN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 272224
-
- Brand: Coronado

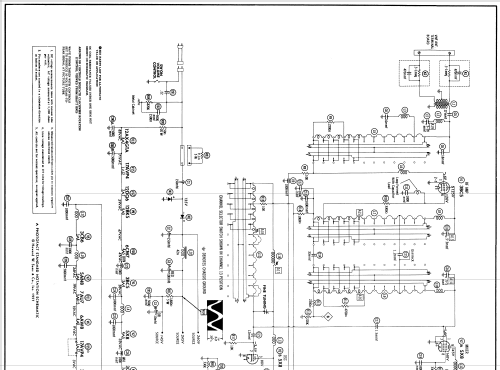

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- 3BC5 5X8 3CB6 3CB6 3CB6 6AW8 5AN8 3BN6 12BK5 6CM7 7AU7 12DQ6 12AX4GTA 1X2B 17AVP4 or 17AVP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 105 - 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: Coronado TV1-9400A - Gamble-Skogmo, Inc.;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Tunig range: channel 2 thru 13 VHF.
- Mentioned in

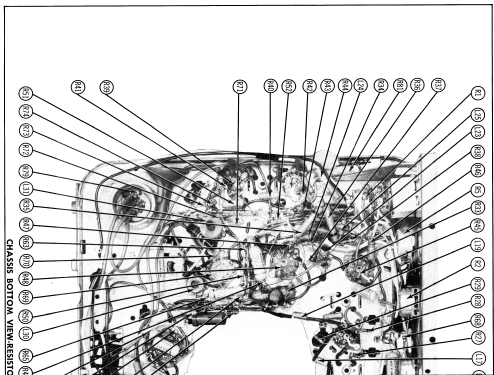

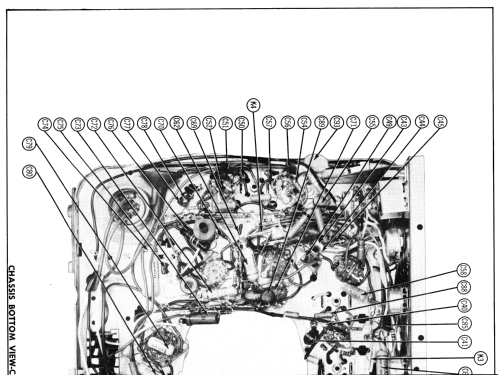

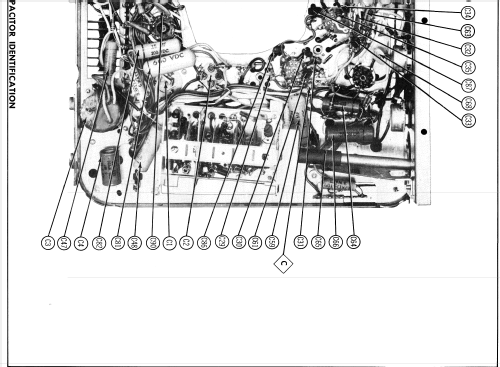

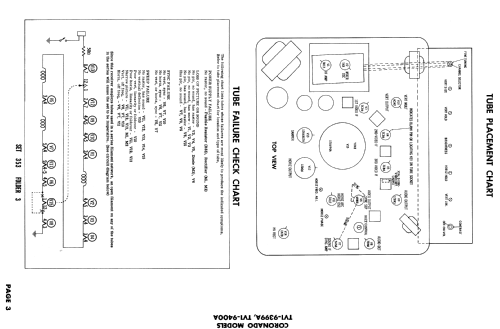

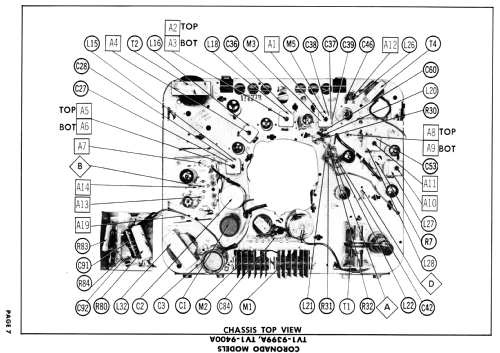

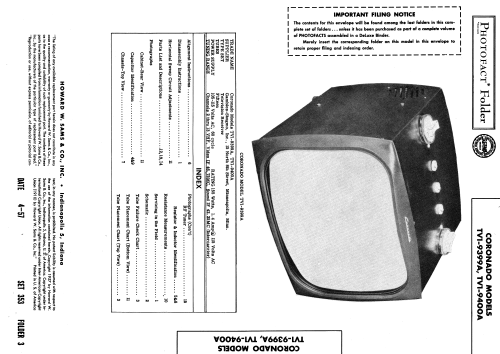

- Photofact Folder, Howard W. SAMS (Set 353, Folder 3, Date 4-57)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
