Coronado TV2-9420A
Gamble-Skogmo, Inc.; Minneapolis, MN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 317329
-
- Brand: Coronado

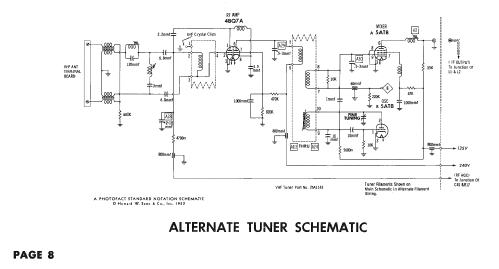

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 2AF4 4BZ7 5U8 3CB6 3CB6 3CB6 12BY7A 5U8 3BN6 5AQ5 7AU7 12W6GT 6SN7GTB 12DQ6 or 12CU6 or 12BQ6GA 12AX4GTA 1B3GT 21ATP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Coronado TV2-9420A - Gamble-Skogmo, Inc.;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Coronado model TV2-9420A is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF-UHF tuner 25A1145 and picture tube 21ATP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 379 Folder 2 dated 11-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
