TV2-9470A
Gamble-Skogmo, Inc.; Minneapolis, MN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 184695
-
- Brand: Coronado

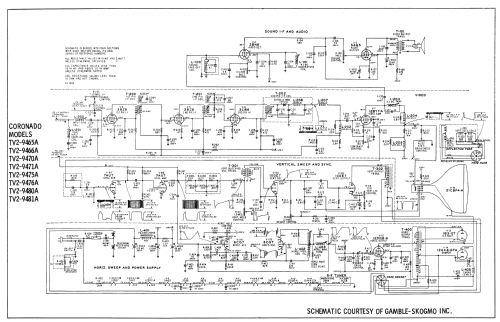

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 2AF4A 2BN4 5CG8 3BN6 5AQ5 3BZ6 3BZ6 3CB6 12BY7A 7AU7 10DE7 6CG7 12DQ6A 1B3GT 12AX4GTA 21CBP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: TV2-9470A - Gamble-Skogmo, Inc.;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- 21" b/w TV with US standard VHF Tuner, Channels 2 thru 13, 14 thru 83 UHF.
- Literature/Schematics (1)

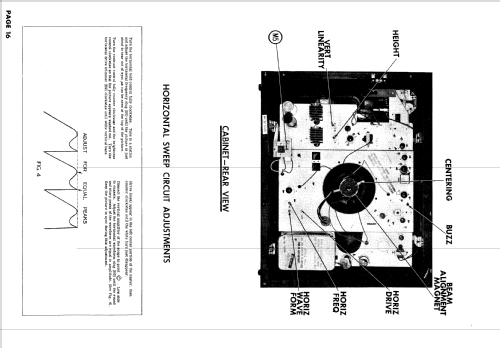

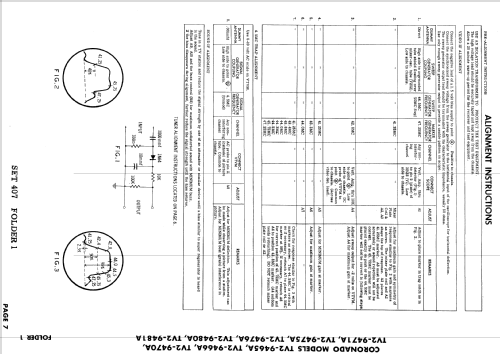

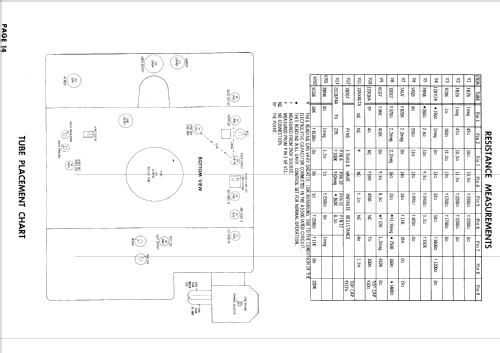

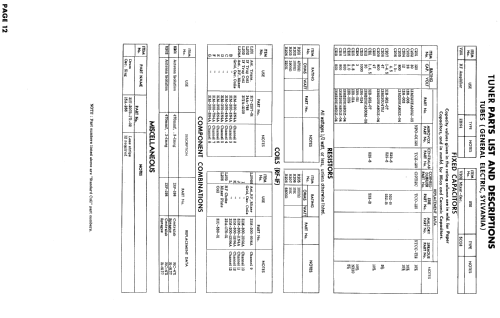

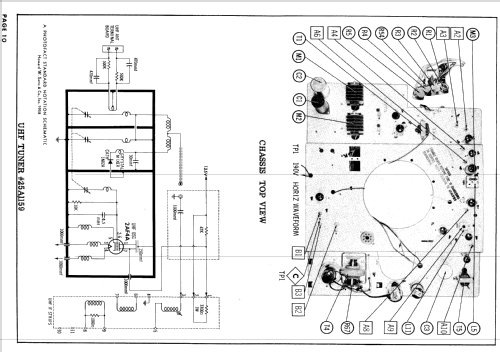

- Photofact Folder, Howard W. SAMS (Date 7-58, Set 407, Folder 1)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 384 Folder 17-S dated 1-58)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
- Other Models
-
Here you find 705 models, 331 with images and 635 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Gamble-Skogmo, Inc.; Minneapolis, MN
