Coronado TV2-9486A
Gamble-Skogmo, Inc.; Minneapolis, MN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 183911
-
- Brand: Coronado
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 2BN4 5CG8 5U8 5U8 3BN6 5AQ5 3BZ6 3BZ6 3CB6 12BY7A 3BY6 10DE7 3AU6 6CG7 12DQ6A 1B3GT 12AX4GTA 21CBP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: Coronado TV2-9486A - Gamble-Skogmo, Inc.;
- Notes
-
Coronado model TV2-9486A is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis a VHF tuner and picture tube 21CBP4A.
- Literature/Schematics (1)

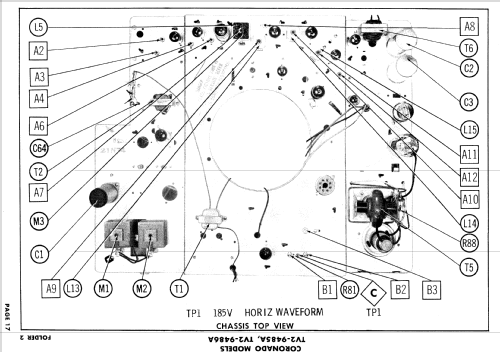

- Photofact Folder, Howard W. SAMS (Date 6-58, Set 404, Folder 2)
- Literature/Schematics (2)

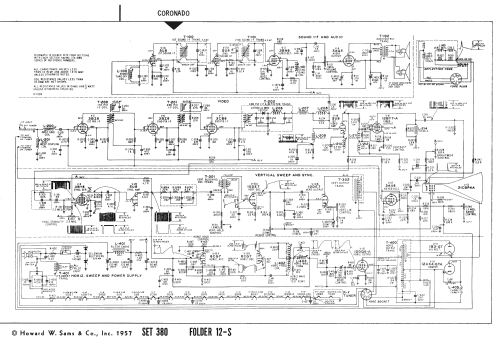

- Photofact Folder, Howard W. SAMS (Set 380 Folder 12-S dated 12-57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
