• Country
• Hungary

• Manufacturer / Brand
• GANZ Árammérögyár; Gödöllö

• Year
• 1980 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 334084

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: DC-Kalibrator - GANZ Árammérögyár; Gödöllö

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 515 x 270 x 430 mm / 20.3 x 10.6 x 16.9 inch

• Notes

• Range:

  30-300 mV

  3-30-300 V

  30-300  μA

  3-30-300 mA

  3 A

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 58,900.00 Forint

• Literature/Schematics (1)

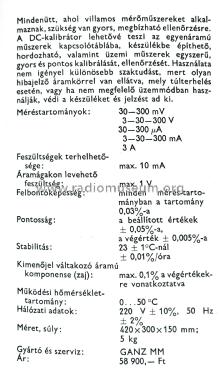

• Műszer és Irodagép Katalógus,1983

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
