mV Meter DPM 200 mV
GANZ Árammérögyár; Gödöllö
- Country
- Hungary
- Manufacturer / Brand
- GANZ Árammérögyár; Gödöllö
- Year
- 1975 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 239857
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / + 5; -5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: mV Meter DPM 200 mV - GANZ Árammérögyár; Gödöllö
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 72 x 24 x 90 mm / 2.8 x 0.9 x 3.5 inch
- Notes
-
Measuring range: 200 mV.

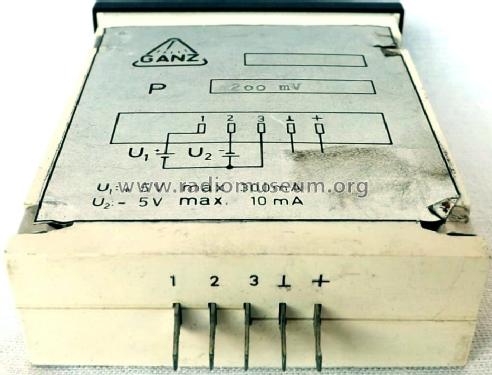

External batteries have to be connected for the supply of:
- U1: +5 V (max. 300 mA)
- U2: -5 V (max. 10 mA).
- Net weight (2.2 lb = 1 kg)
- 0.080 kg / 0 lb 2.8 oz (0.176 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
