1110TVP
Garod Radio Corp.; Brooklyn (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Garod Radio Corp.; Brooklyn (NY)
- Year
- 1948 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 232601

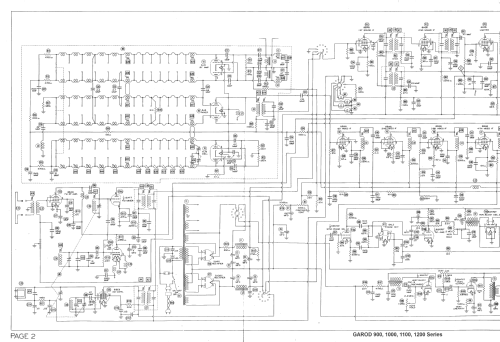

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 28
- Valves / Tubes
- 6J6 6J6 6J6 6BA5 6BA6 6BA6 6BA6 6AL5 6AC7 6SN7GT 6BA6 6AU6 6AU6 6T8 6K6GT 6SN7GT 6AL5 6SN7GT 6BG6 5V4 1B3GT 6SN7GT 6BA6 12AT7 6BE6 5U4G 5Y3GT 10BP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1110TVP - Garod Radio Corp.; Brooklyn NY
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Notes
-
AM-FM Television Receiver
AM: 540-1650 kc, FM: 88-108 Mc, TV: Channels 1 thru 13
- Mentioned in

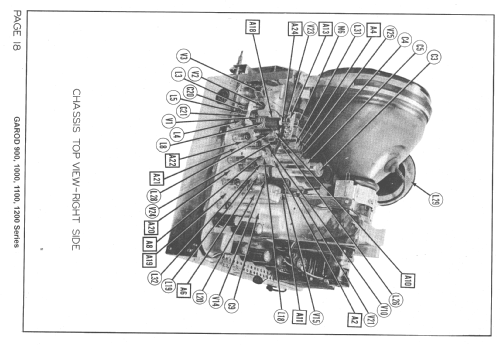

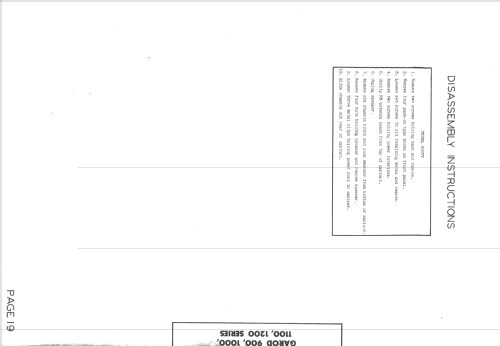

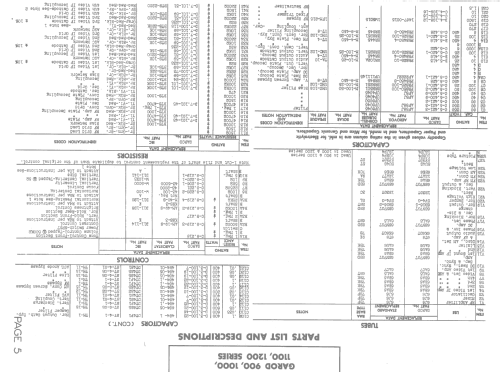

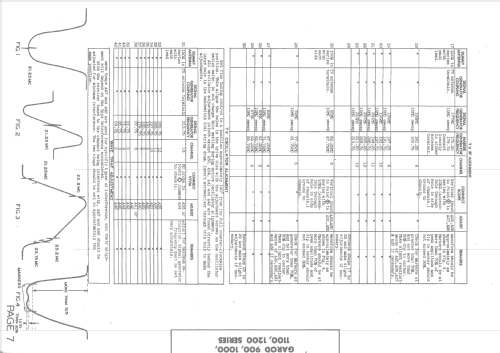

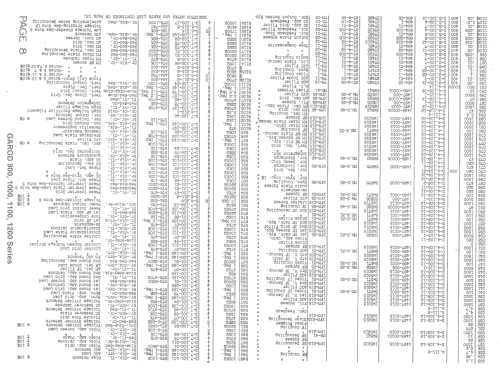

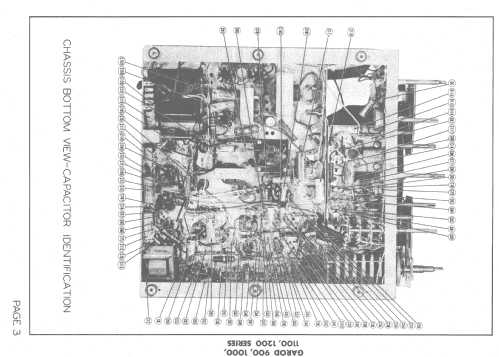

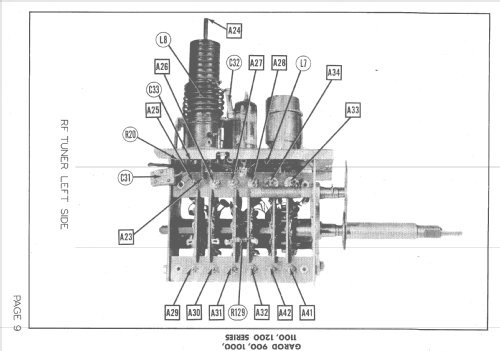

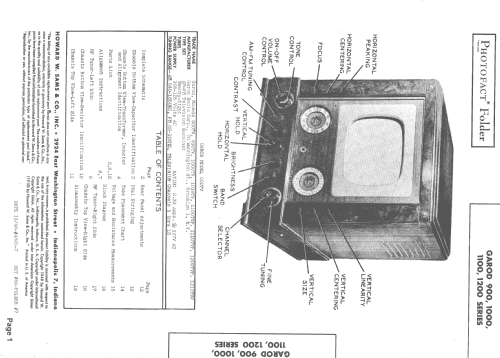

- Photofact Folder, Howard W. SAMS (Vol.5 11/48 4820-7 Set 50 Folder 7)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
