- Country
- United States of America (USA)
- Manufacturer / Brand
- Garod Radio Corp.; Brooklyn (NY)
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 41492

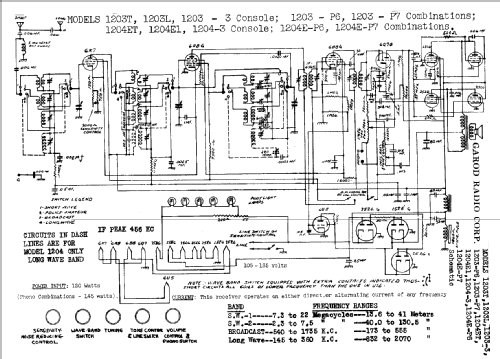

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- AC/DC-set / 105-135 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 1203-3 - Garod Radio Corp.; Brooklyn NY
- Notes
-
The same Garod schematic applies for models 1203T, 1203L, 1203-3, 1203-P6, 1203-P7, 1204ET, 1204E1, 1204-3, 1204E-P6 and 1204E-P7.
See also Grebe 1203-P8 with phonograph.
